Description

The C-Thru® Separator is a unique, patented unit designed to remove solid and liquid contamination from coolants and cleaners throughout the metalworking and pretreatment industries.

Contaminants such as hydraulic oil, way lube, and rust preventatives continually enter the metalworking and cleaning fluids from the machine itself or parts being processed in the application.

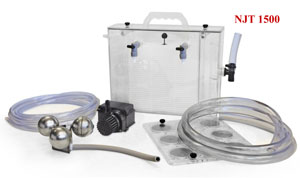

NJT 1500
Contamination of the fluid can cause:

•Decreased fluid life
•Increased hazardous fluid disposal
•Increased chemical concentrate purchases
• Increased bacteria activity leading to odor,
rancidity and degradation of fluid
•Decreased tool life
•Increased machine downtime
•Increased smoke generation in machining process
•Increased use of filters due to media blinding
•Decreased cleaning performance leading to quality issues and rejects





The C-Thru® Separator is manufactured via injection mold producing a seam free, extremely durable tank. The tank has withstood being dropped from over 15 feet onto cement, hit with a 8 pound sledge hammer and driven over by a 10,000 pound truck. The chemical resistance of the resin is outstanding as it can withstand aggressive chemicals such as sodium hydroxide, sulfuric acid, mineral oil, kerosene, diesel fuel and isopropanol.

Features
The C-Thru® Separator is compact and portable with installation made simple by attaching directly to the machine utilizing the magnetic base provided.

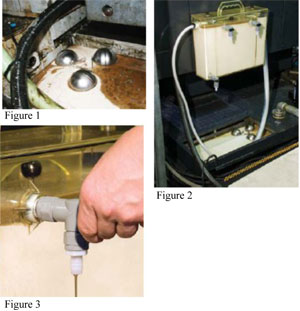

A float connected to a pump (electric or air) draws the contaminate oil from the surface of fluid (Figure 1). The tramp oil is separated and remains in the C-Thru® Separator (Figure 2) where it can be drained off by opening the valve (Figure 3).

Nexjen








Benefits
•Extended fluid life
•10X more efficient then belt, disk or rope skimmer
•Reduced waste disposal
•Increased tool life
•Simple and quick installation
• No consumables
•Compact
•No floor space utilized
•Easy to clean
•Patented, transparent design
